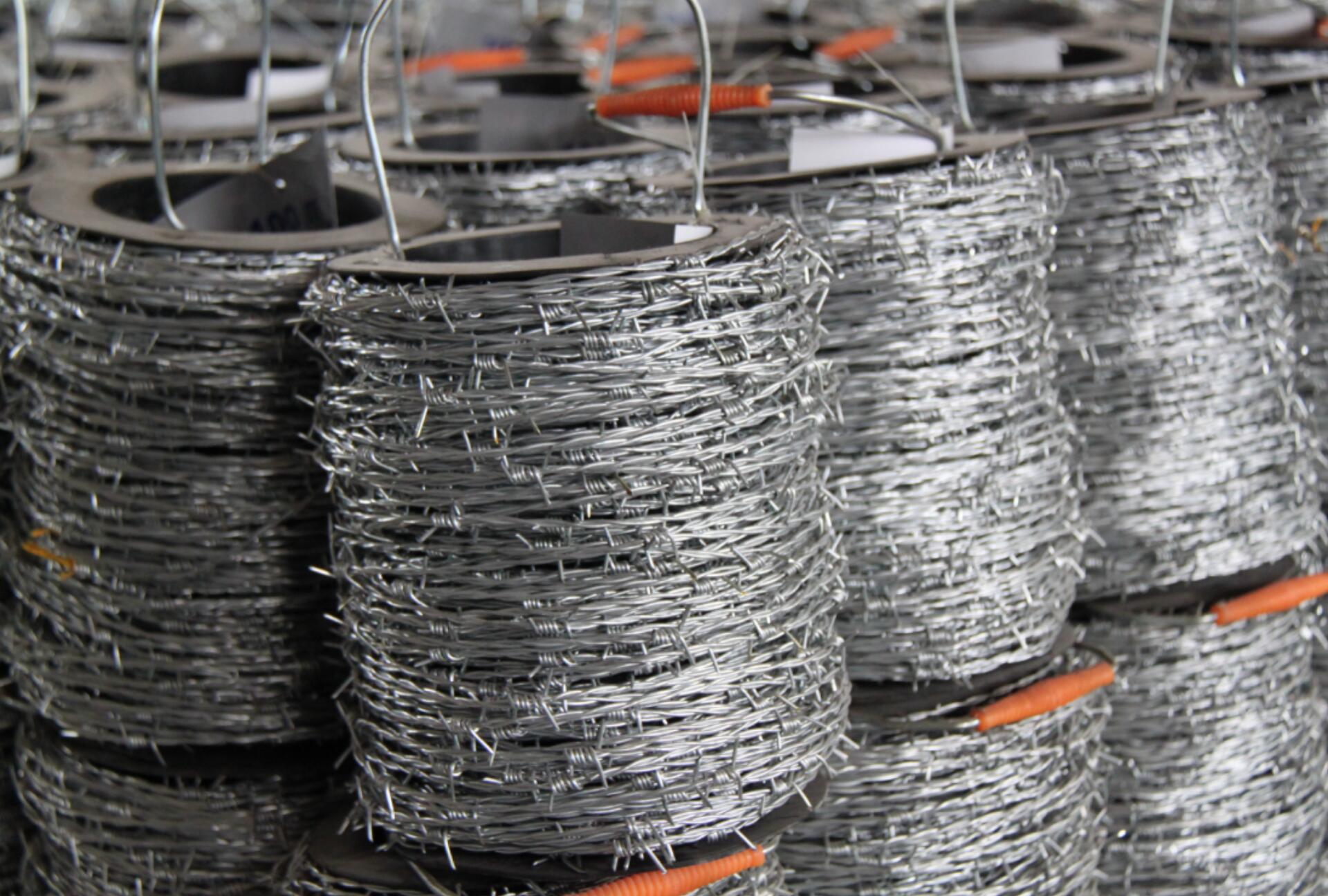

BWG 12x14 hot dipped galvanized cold galvanized single/double twisted barbed wire with spool roll
Barbed wire is a kind of modern security fencing materials,Barbed wire can be installed as deterrent to the perimeter intruders with piecing
and cutting razor blades mounted at the top of the wall . Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the
atmosphere. Its high resistance allows greater spacing between the fencing posts
Standard | ASTM |
Type | Galvanized / Stainless |
Application | Field Fence, chain link fence,t post,y post
|
Tolerance | ±3% |
Processing Service | Bending, Welding, Punching, Decoiling, Cutting |
Delivery Time | within 35-45 days |
Shape | galvanized, Low carbon drawing steel |
Technique | Cold Rolled/Hot Rolled |
Surface treatment | Hot Dipped Galvanized / PVC coated / cold Galvanized |
Inspection | Accept Thrid Party Inspection |
Barbed wire
| 1.5-3cm |
barbed distance
| 7.5 -15cm |
Gauge of Strand and Barb in B.W.G. | Approximate Length per Kilo in Meter |
Barbs Spacing 3" | Barbs Spacing 4" | Barbs Spacing 5" | Barbs Spacing 6" |
12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
